SQL Server 2016: View Designer

The View Designer is a visual tool that can help you build views.

The View Designer is just like the Query Designer, in that it provides a visual way of designing a query. It saves you the trouble of designing the query in Query Designer, then doing the extra coding to convert the query into a view (like we did previouslya).

Now we will use the View Designer to create another view.

  1. Launch the View Designer

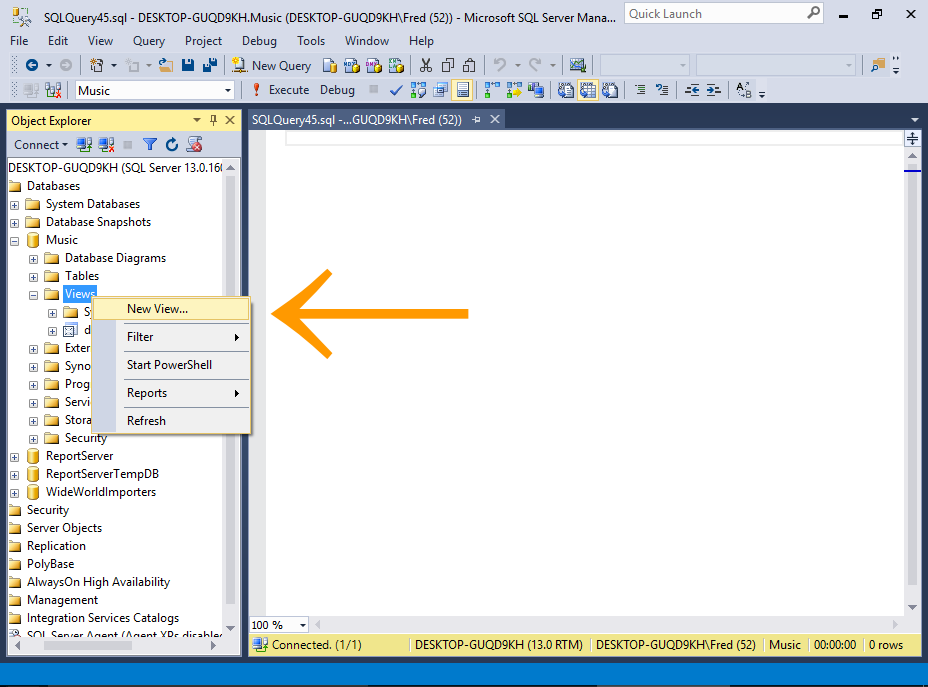

    Screenshot of accessing the View Designer in SQL Server.

    Right-click on the Views node and select New View....

  2. Add the Tables

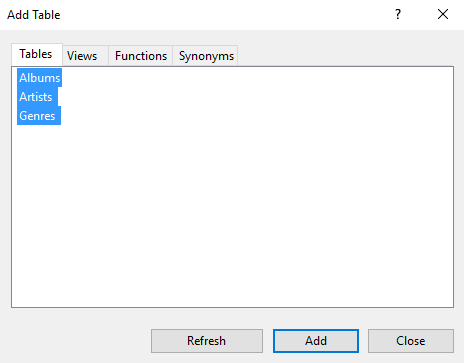

    Screenshot of accessing the View Designer in SQL Server.

    Select the tables that you want to include in your view.

    In our case, select all and click Add, then click Close to close the dialog box.

  3. Design the View

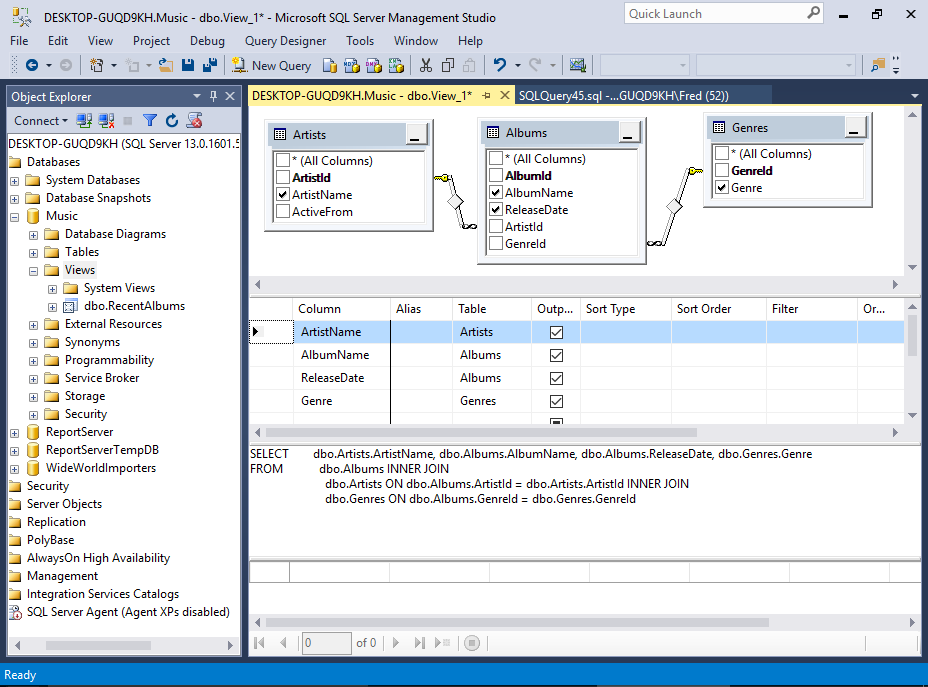

    Screenshot of the View Designer in SQL Server.

    You will now see the selected tables, and their relationships — just like in the Query Designer.

    One difference is that the View Designer is sitting inside a query window. When we used the Query Designer, it was opened in a pop-up dialog, which prevented us from accessing any of the toolbar options, etc.

    But having the View Designer opened inside a query window allows us to access the toolbar and other options as required.

    Another difference is that we now have a fourth pane — the Results Pane. This allows us to execute the SQL to see what effect it has on the results before we save the view.

    Our Example

    We'll keep it simple this time and select four columns from the three tables. We won't provide any criteria.

    Here's a close-up of the Criteria Pane:

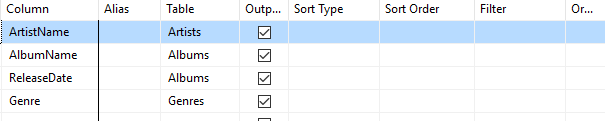

    Close up of the Criteria Pane.

  4. Execute the SQL

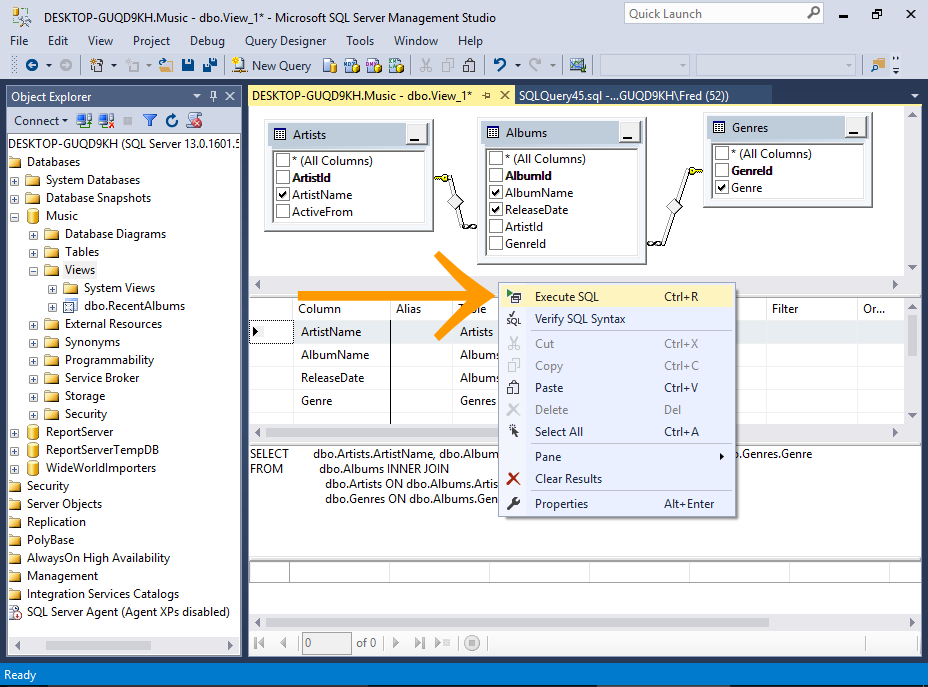

    Screenshot of the View Designer in SQL Server.

    You can test the view before you save it by executing the SQL while in the View Designer.

    To do this, right-click anywhere in the design area and select Execute SQL (or press Ctrl+R on your keyboard).

  5. The Results

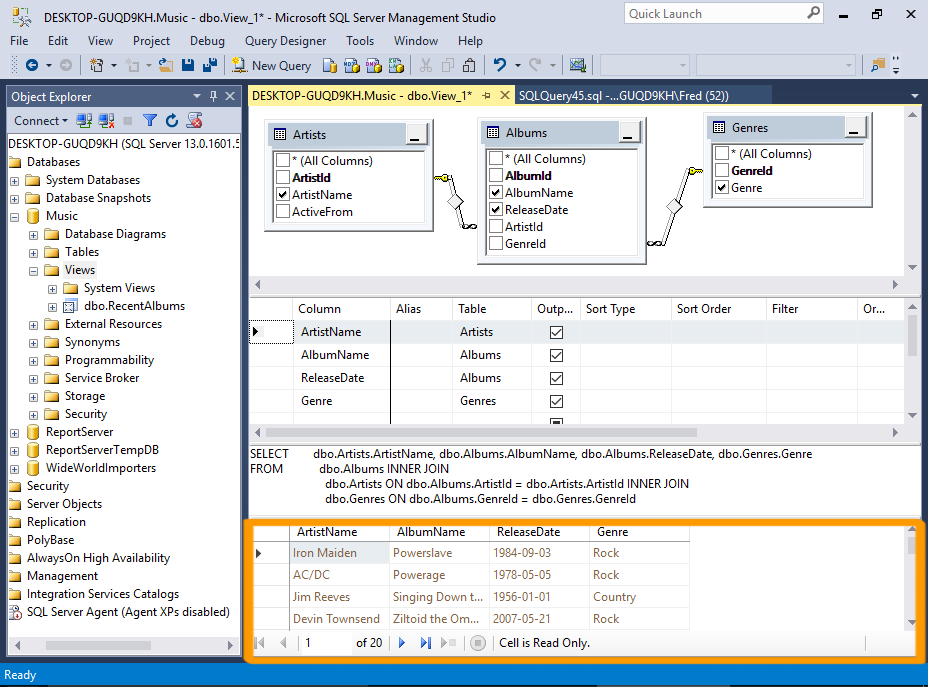

    Screenshot of the View Designer in SQL Server.

    The results appear in the Results Pane at the bottom.

  6. Save the View

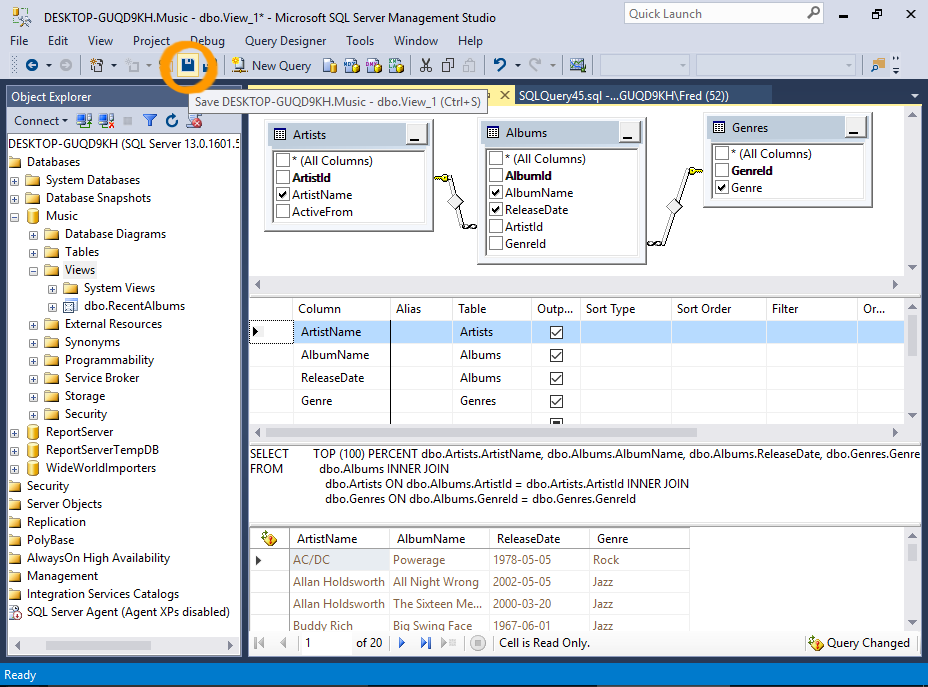

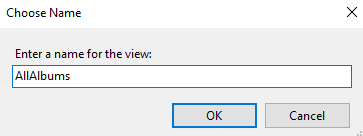

    Screenshot of the View Designer in SQL Server. Screenshot of saving a view in SQL Server.

    To save the view, click the Save icon on the toolbar, then name the view at the prompt.

  7. Query the View

    Screenshot of the View in the Object Browser.

    Now you can query the view with a SELECT statement as if it were a table.

Naming Conventions

Some database developers like to prefix their name view names with v or v_ or similar to help distinguish between views and other database objects.
